Brand: APC Ups
Model: SRT8KXLI
Color: Black
Max Configurable Power (Watts): 8.0kWatts / 8.0kVA
Nominal Output Voltage: 230V
Nominal Input Voltage: 230V, 400V 3PH

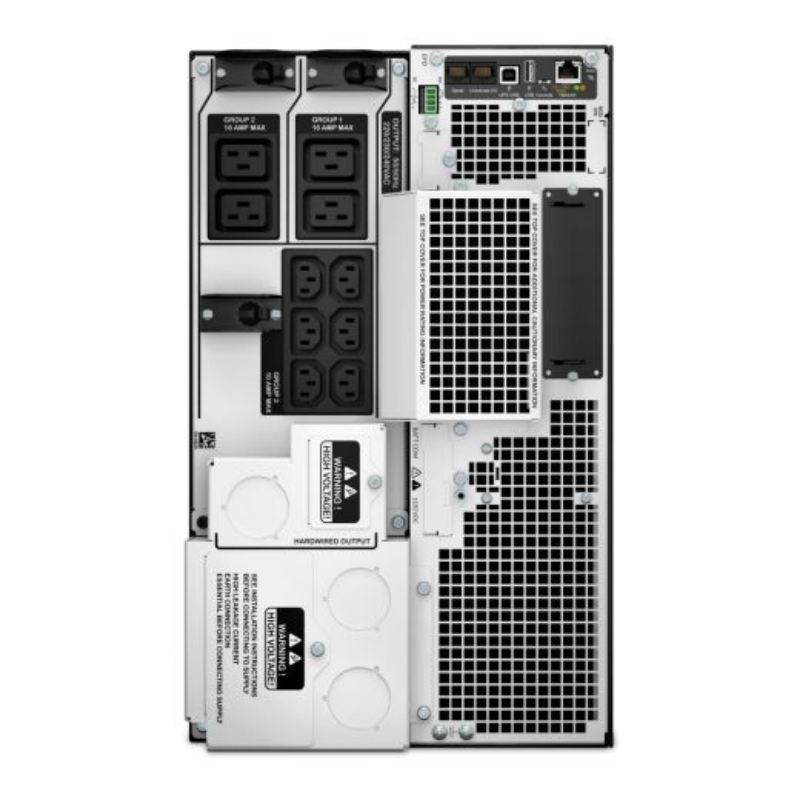

Output Connections:
(6) IEC 320 C13 (Battery Backup)
(3) IEC Jumpers (Battery Backup)
(6) IEC 60320 C13 (Battery Backup)
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
(4) IEC 60320 C19 (Battery Backup)
(1) Hard wire 3-wire (H N + E) (Battery Backup)
Input Connections: Hard wire 3-wire (1P + N + E), Hard wire 5-wire (3P + N + E)
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
Topology: Double conversion online
Waveform type: Sine wave
Bypass: Internal bypass (automatic and manual)
Input frequency: 40 - 70 Hz Auto-sensing
Input voltage range for main operations: 100 - 275 Adjustable (half load), 173 - 476 Adjustable (half load)V
Battery type: Lead-acid battery
Typical recharge time: 1.5hour(s)
Nominal Battery Voltage: +/- 192 V (split battery referenced to neutral)
Expected Battery Life (years): 3-5
Battery Charge Power (Watts): 876 Watts
Interface Port(s): RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Protection Class: IP20
Surge energy rating: 480Joules
Maximum Height: 432 mm
Maximum Width: 263 mm
Maximum Depth: 715 mm
Net Weight: 111.82 kg
