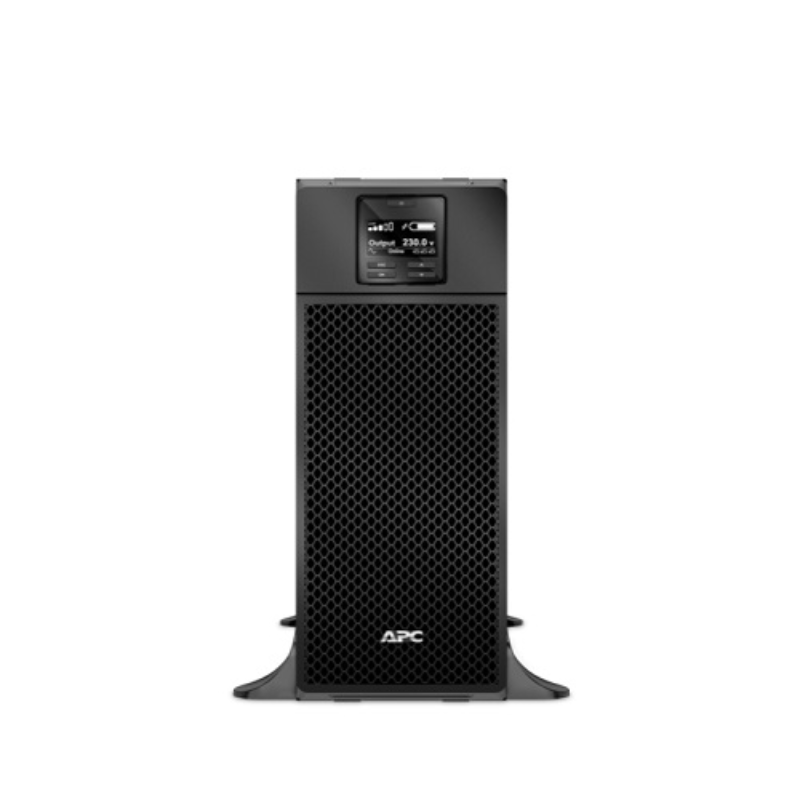

Brand: APC Ups
Model: SRT6KXLI
Color: Black
Max Configurable Power (Watts): 6.0kWatts / 6.0kVA
Nominal Output Voltage: 230V
Nominal Input Voltage: 230V
Output Connections:
1) Hard wire 3-wire (H N + E) (Battery Backup)
(2) IEC Jumpers (Battery Backup)
(4) IEC 60320 C19 (Battery Backup)
(4) IEC 320 C19 (Battery Backup)
(1) Hard Wire 3-wire (H N + G) (Battery Backup)
(6) IEC 320 C13 (Battery Backup)
(6) IEC 60320 C13 (Battery Backup)
Input Connections: Hard wire 3-wire (1P + N + E)
Output Frequency (sync to mains): 50/60 Hz +/- 3 Hz Sync to mains
Topology: Double conversion online
Waveform type: Sine wave
Bypass: Internal bypass (automatic and manual)
Input frequency: 40 - 70 Hz Auto-sensing
Input voltage range for main operations: 100 - 275 Adjustable (half load)V
Battery type: Lead-acid battery
Typical recharge time: 1.5hour(s)
Nominal Battery Voltage: 192 V
Expected Battery Life (years): 3-5
Battery Charge Power (Watts): 597 Watts
Interface Port(s): RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB
Protection Class: IP20
Surge energy rating: 480Joules
Maximum Height: 432 mm
Maximum Width: 174 mm
Maximum Depth: 719 mm
Net Weight: 60.0 kg
